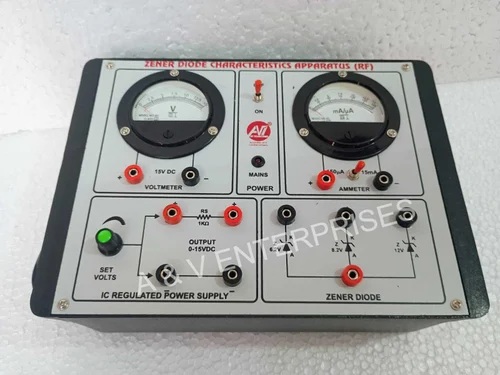

OBJECTIVE : To study Forward & Reverse V-I Characteristics of Zener Diode.
Technical Specifications:
- Apparatus comprises of DC Regulated Power Supply Variable (0 – 15V DC)
- Two Analog Meters (Voltmeter 0-15VDC & Ammeter 1.5mA/15mA Dual Range).
- Zener Diode type (3.3 V, 5.6 V & 8.2V).
- 4mm Banana type sockets for connections.
- ISI marked fine quality Bakelite front Panel
- Light weight shock proof ABS Plastic cabinet.
- Power Requirements for apparatus: 230V AC +/- 10%, 50 Hz.
- Cabinet Dimensions: 280mm x 205mm x 85mm
- Standard Accessories Patch Cords & Instructions Manual.
